TT-12G
TT-12G
TT-12G
TT-12G
TT-12G

TT-12G

Document Cameras
PRODUCT CODE #
1380

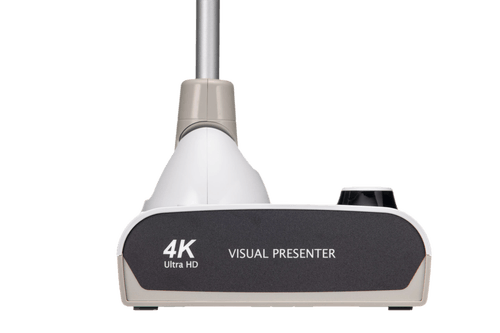

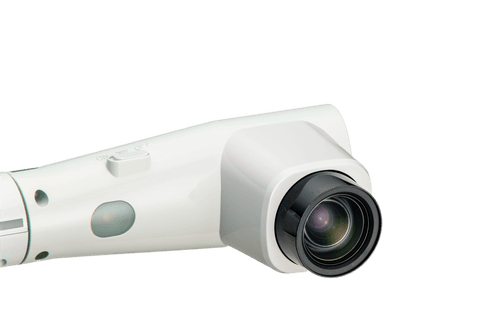

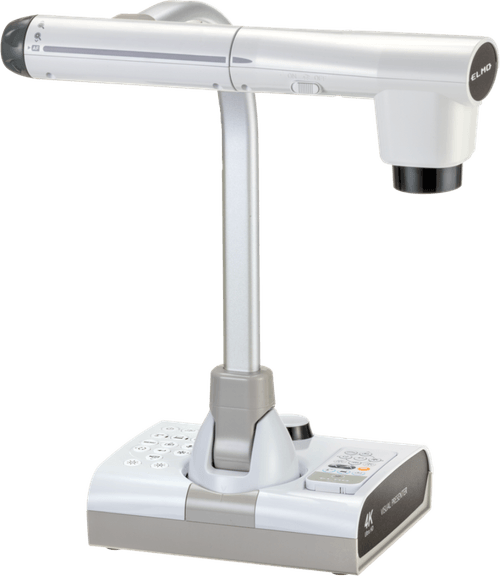

New and improved with 4K Ultra HD Resolution, displaying the sharpest and most clear images in its class. See every hidden detail vividly with its 192x Total Zoom. Ergonomically designed to be flexible, show new angles while engaging with your audience. It comes with built-in Miracast for convenient wireless sharing on any display device.

Note This item requires the use of the following item to work properly
2 Pin Plug (5ZA0000232)
Note This item requires the use of the following item to work properly
US plug (MX-P, MX-P2, and MX-P3)
Note This item requires the use of the following item to work properly
US Plug (TT-12W, MA-1 and MO-2)
Note This item requires the use of the following item to work properly
AC Adapter (MX-P, MX-P2, and MX-P3)
Note This item requires the use of the following item to work properly
AC Adapter (TT-12W, MA-1 and MO-2)

Please note all refurbished units have a 90 day warranty and are FINAL SALE!

This refurbished unit has a 3 year warranty and is a FINAL SALE!

Interactive Displays are shipped via truck. A representitive will contact you for additional details regarding delivery. Price shown included shipping costs.

ELMO Board is available to ship to the continental US only.
Orders from AK and HI will not be accepted.

Parts

ELMO Cast

Microscope Adapter Lesn(TT Seried)

Security Bracket,Anti-theft bracket for TT-12, TT-12i, TT-12iD, TT-12W, TT-12F

USB Cable for TT-02u, TT-02s, TT-02RX, TT-12W, P10, P10S, P30, P30S, OX-1, MA-1, MO-2

Remote Control (TT-12G)

AC Adapter #5ZA0000104X, TT-12G, TT-12iD, TT-12i, TT-12, TT-02, TT-02u, TT-02s, TT-02RX, HV-110u, HV-100XG, HV-110XG, EV-200, CO-10

K-12
Higher Ed
Business & Corporate
Government & Military
Parts & Related ProductsManualSpecificationsQuick Start Guides
Quantity in Stock
Available on back-order
$ 1,299
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Discontinued
OUT of stock

Product Features

TT-12G

192x Zoom in 4K Ultra HD

The TT-12G offers 192x digital zoom at 4K resolution, capturing video in True 4K Ultra HD at 30fps or Full HD at 60fps without any loss of quality.

Endless Connection with HDMI & RGB Passthrough

The TT-12G comes with High Speed USB 2.0 for up to 4K resolution, HDMI, and RGB/VGA output options to connect seamlessly to a wide variety of devices.

TT-12G
TT-12G

Display Wirelessly

Connection made easy with Miracast Display.

TT-12G
TT-12G
TT-12G

More about

TT-12G

Specifications & Downloads
Specifications
Downloads
Videos

Camera
Image Sensor 12M 1/2.3"

Optics
Optical Zoom 12x
Digital Zoom 16x
Total Zoom 192x
Lens / Aperture F=3.2-3.8
Auto focus Auto (One-push / Zoom Sync), Manual
Shooting Area Max. 430x319mm, Min. 53.6x40.3mm (4:3) Max. 469x259mm, Min. 58.5x33mm (16:9)
Focal Range WIDE：50mm~　TELE：200mm~

Functions
Simultaneous output (USB/HDMI/RGB) Yes
Miracast Yes (Max. 1080p)
Built-in Microphone Yes
Audio Selection (1) Microphone related
Input: Built-in microphone / External microphone and line input are used together.
Output: Line output
(2) HDMI audio: HDMI output of external HDMI input audio only. No output of camera image audio.
Audio ON/OFF Software Selection
Recording save locations (1) USB flash drive (still images/video)
(2) SD card (still image/video)
(3) Internal memory (still images)
Priority: USB memory > SD card > Internal storage
Record / Playback SD Card Resolution Up to 4K (8 to 4 Mbps)
Built-in microphone sound is included in video.
Video recording is not possible during USB image output.
OSD View HDMI/RGB/USB
Start Up Time Approx. 15 sec.
Classroom Support Functions Highlight / Mask / Microscope / Compare Picture / PinP
Image Rotation 0°/90°/180° / Mirror / Flip

Interface
Input selection Main / External
Output terminals USB Device, USB2.0 TYPE C (UVC/UAC)
VGA D-sub (Passthrough)
HDMI Type A (Passthrough)
Line Out 3.5 mm stereo Mini Jack x 1
Input terminals External Microphone 3.5mm Stereo Mini Jackｘ1
VGA D-sub (Passthrough)
HDMI Type A (Passthrough)
USB host, USB 2.0 Type A x 1 USB Memory
Resolution TV Lines : Horizontal 1600TV (4K) / Vertical 1600TV (4K)
USB (MJPEG) : 3840x2160@30fps / 1920x1080@60fps
HDMI : 4K/30fps,1080P/60fps, 720p/60fps
RGB 1080P/XGA

Lighting
LED Lighting Yes

Others
SD Card Max32GB（FAT32）
Remote Control Yes
Power Supply Voltage 12V DC Jack
Power Consumption 21.6W
Weight (Main Unit Only) 6.6 Lbs.
Dimensions (WxDxH) Setup: 13.7(W)x17(H)x14.8(D)in
Folded: 7.6(W)x18.7(H)x11.5(D)in
Accessories AC Adapter, Power Cord, USB Cable, Quick Start Guide, HDMI Lock x2, Cable Tie x2, Remote Control, Coin Battery
